General Computing Chassis

General Computing

EEB(12*13)/CEB(12*10.5)/ATX(12*9.5)/Micro ATX / Supports SGPIO; compatible with SAS3.0/SATA3.0 hard drive

Add to Compare

Product Overview Product Specifications Relevant Information

2U Rackmount server chassis series with 670 mm depth
Chassis supports up to standard EEB (12"x13")

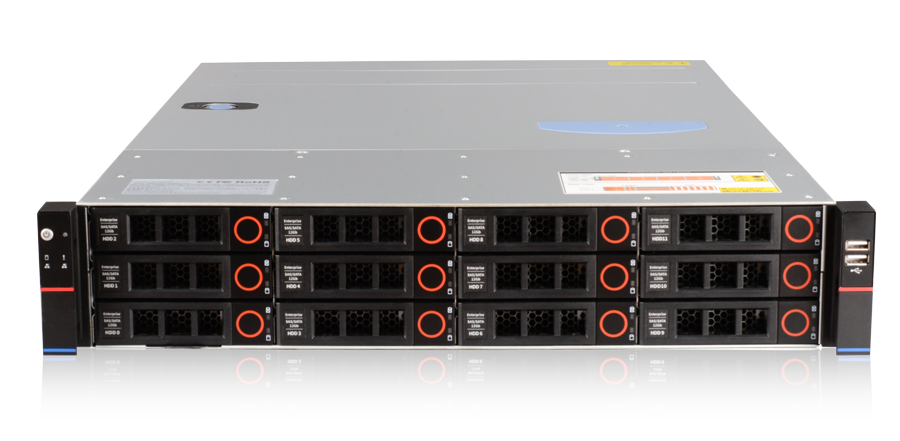

Front panel supports 12 * 3.5" or 2.5" hot-swap hard disks. 2 * 2.5" non-hot-swap hard disk expansion bay can be built-in. 2 * 2.5" hot-swap hard disks can be selected
Backplane supports 12 Gb/s speed, using high-quality & high-speed FR4 plate
The chassis backplane supports SGPIO function, visually showing the working status of the hard disk
Supports intelligent temperature control, solving the the problems of noise and heat dissipation of the chassis
High-performance 3 x 8038 cooling fans with anti-vibration mechanism
Supports 7 * half height or 3 * full height PCIe expansion cards

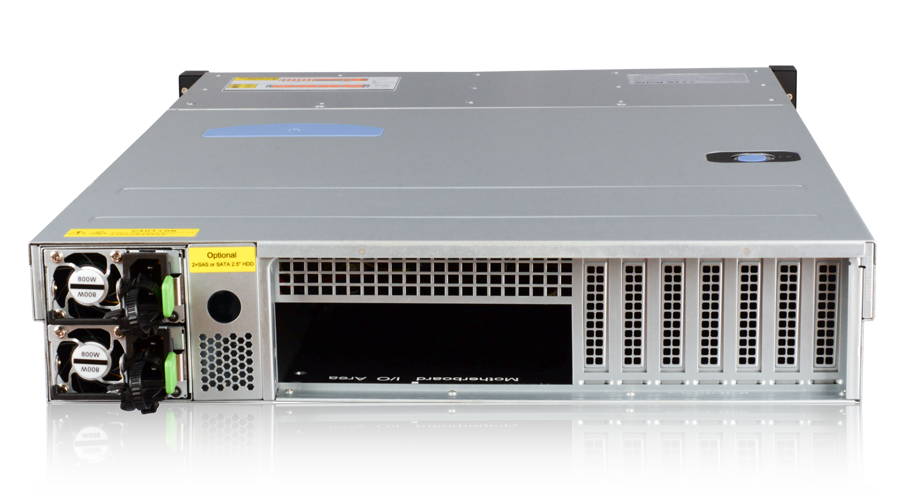

Supports CRPS Redundant power supplies and standard single power supply
The chassis is suitable for standard 19 inch Cabinet installation
Suitable for HPC, WEB, database, file and storage server

Chassis Form	Rackmount
Chassis Height	2U
Compatible Motherboard	EEB(1213)/CEB(1210.5)/ATX(12*9.5)/Micro ATX
Power Type	Single power or 1+1 redundant power supply
Backplane	12Gb/s passive backplane
Hard Drive Bay	Supports SGPIO; compatible with SAS3.0/SATA3.0 hard drive; 12x 3.5" (or 2.5") hot-swap hard drive bays; optional rear 2* 2.5" hot-swap hard drives
HDD Shockproof	The hard drive rack adopts EMI spring design, unique shockproof fan design, reduces the resonance between the fan and the hard disk, and does not affect the hard drive I/O speed
System Fan	Supports intelligent-temperature control, 3x 8038 hot-swap fans, up to 4x 8038 hot-swap fans
Expansion Slot	7x half-height PCIe expansion card slots, optional 3x horizontal full-height expansion card slots
Security	Lock screw upper cover
Front Panel Control	2 USB2.0, 1 power button, 1 restart button, 1 hard disk indicator, 1 system fault indicator, 2 network indicators
Slide Rail	Optional
Air Duct	Optional
Front Mask	Optional
Product Material	Imported SGCC (galvanized steel sheet), ABS panel and perforated mesh
Chassis Size	670mm444mm87.6mm (D* W* H)
Chassis Gross Weight	10.5kg（Net weight）/ 16kg（Gross weight）
Package Size	902mm591mm228mm (D* W* H）

Please note that the above specifications are subject to change without prior notice. (Chuyu reserves the right for the final interpretation)
