GPU Computing Chassis

Compute-Storage Convergence

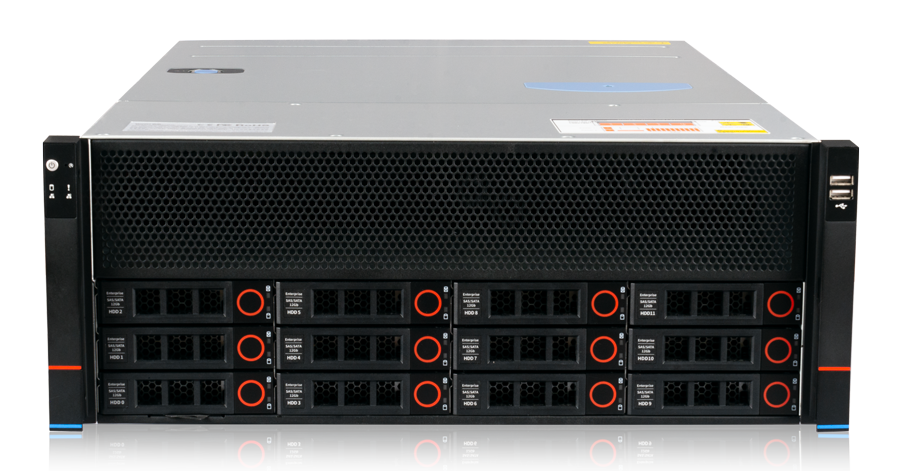

4U height supports 11 full-height PCIe expansion slots, 4 full-height, double-width, full-length GPU cards, and 12 drive bays — combining computing and storage in one, ideal for GPU computing servers

Add to Compare

Product Overview Product Specifications Relevant Information

4U height supports 11 PCIe full-height expansion card slots, support 4 full-height, double-width, full-length GPU cards
With real-time high-speed parallel computing and floating-point computing capabilities
Suitable for HPC, big data analytics, 3D graphics applications, video decoding, deep learning, scientific computing, and other application scenarios

Flexible Platform Conversion Capabilities

Compatible with motherboard X10DRG-Q/X11DPG-QT/X12DPG-QT6/EEB(12*13), the platform is flexible and free to choose to meet different applications of customers. Front 12* 3.5"/2.5" hot-swap hard disk bays, built-in 2* 2.5" non-hot-swap hard disk bays (SAS3.0/SATA3.0/U.2).

Superior GPU Density Support

The 4U system can support up to 11 PCIe full-height expansion card slots, 4 full-height, double-width and full-length GPU cards, compatible with NVIDIA GTX and RTX series, and provide the unrivaled architecture and a variety of power supply methods without changing accessories.

Chassis Form	Rackmount
Chassis Height	4U
Compatible Motherboard	EEB(15.213.2)/CEB(1210.5)/X10DRG-Q/X11DPG-QT/X12DPG-QT6/EEB(12*13)

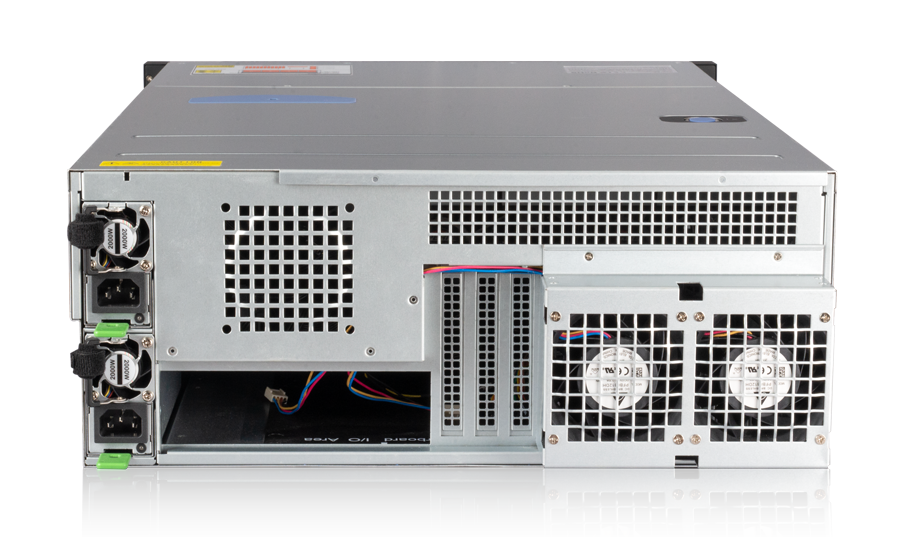

Power Type	Supports 1+1 redundant power supplies
Backplane	12Gb/s passive backplane
Hard Drive Bay	Supports SGPIO; compatible with SAS3.0/SATA3.0 hard drives; front 12x 3.5/2.5” hot-swap hard driver bays, built-in 2x 2.5” non-hot-swap hard driver bays
HDD Shockproof	The hard drive rack adopts EMI spring design, unique shockproof fan design, reduces the resonance between the fan and the hard disk, and does not affect the hard drive I/O speed
System Fan	Supports intelligent-temperature control, built-in 3* 12038 hot-swap fans, optional rear 2x 8038 temperature-control fans
Expansion Slot	Support 11* full-height PCIe expansion card slotsSupport 4* full-height double-width full-length GPU cards
Security	TPM/TCM (Requires motherboard support)
Front Panel Control	2 USB2.0, 1 power switch, 1 reset button, 1 hard disk indicator, 1 system failure indicator, 2 network indicators
Slide Rail	Optional
Air Duct	Optional
Front Mask	Optional
Product Material	Imported SGCC (galvanized steel sheet), ABS panel and perforated mesh
Chassis Size	670mm433mm177mm (D* W* H)
Chassis Gross Weight	30kg（Net weight）/ 36kg（Gross weight）
Package Size	985mm585mm325mm (D* W* H）

Please note that the above specifications are subject to change without prior notice. (Chuyu reserves the right for the final interpretation)
