GPU Computing Chassis

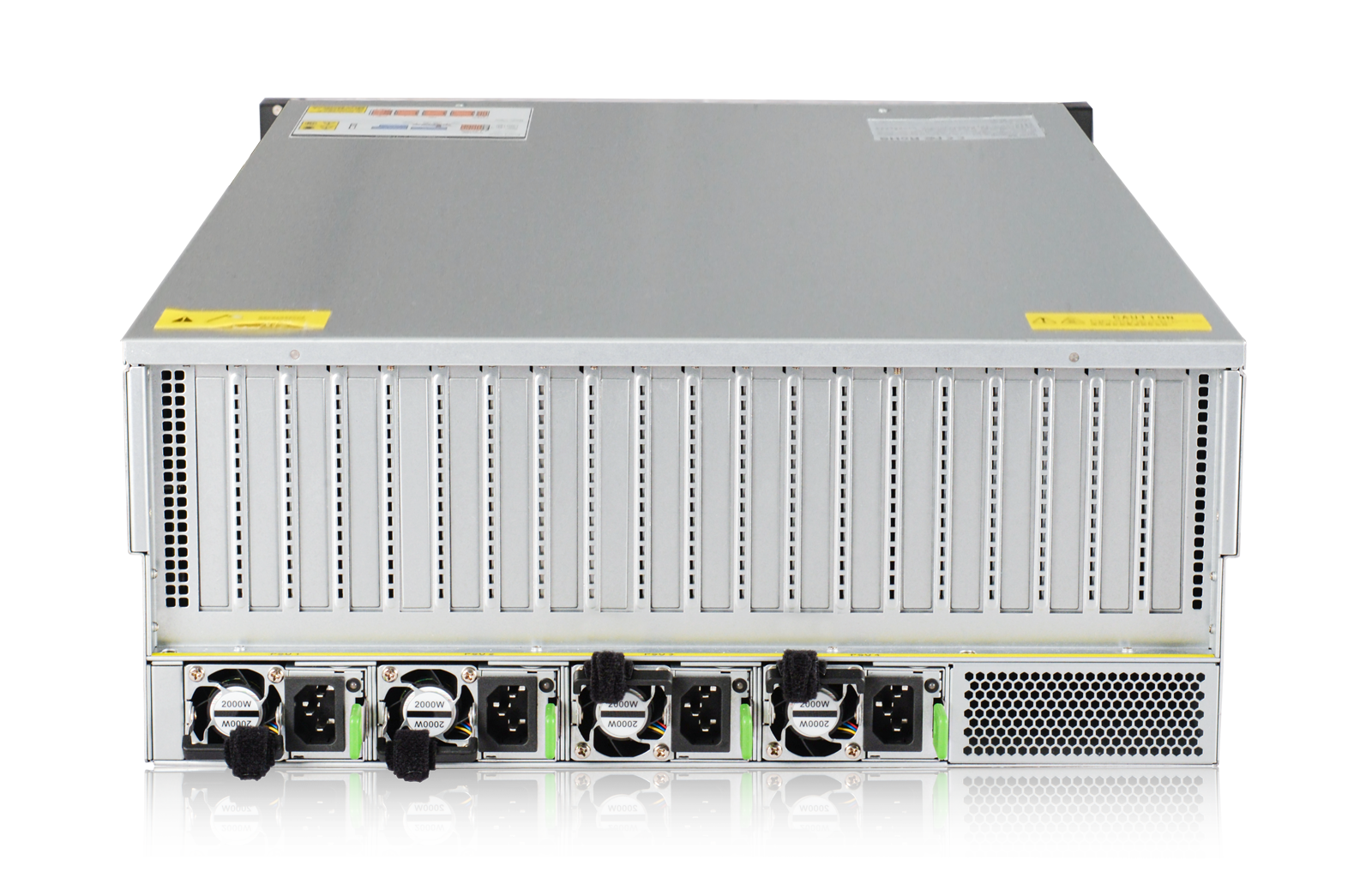

4U GPU Computing Chassis

Compute-Storage Convergence

4U height supports 11 full-height PCIe expansion slots, 4 full-height, double-width, full-length GPU cards, and 12 drive bays, integrating computing and storage in one, suitable for GPU computing servers

Add to Compare

Product Overview Product Specifications Relevant Information

12 x 3.5" hot-swappable drive bays, optional two front 2.5" non-hot-swappable expansion bays ×3, optional internal 2.5" non-hot-swappable expansion bay ×1
12Gb/s SAS backplane, optional NVMe backplane
Supports half-height PCIe expansion slots ×7, full-height double-width GPU expansion slots ×10

Flexible Platform Conversion Capability

Compatible with X10DRG-Q, X11DPG-QT, X12DPG-QT6, and EEB (12×13) motherboards, allowing flexible and free platform configuration to meet different customer applications. Features 12 front 3.5″/2.5″ hot-swappable drive bays and 2 internal 2.5″ non-hot-swappable drive bays (SAS3.0/SATA3.0/U.2).

Exceptional GPU Density Support

The 4U system supports up to 11 full-height PCIe expansion slots and 4 full-height, double-width, full-length GPU cards, compatible with NVIDIA GTX and RTX series. Offers multiple power supply options without the need for component modification, delivering an unparalleled architecture for customers seeking maximum computing performance.

Chassis Form	Rackmount
Chassis Height	4U
Compatible Motherboard	EEB (12 × 13) / CEB (12 × 10.5) / ATX (12 × 9.5) / Micro ATX, etc.
Power Type	2+2 redundant power / 3+1 redundant power
Backplane	12Gb/s SAS/SATA data backplane, optional NVMe data backplane
Hard Drive Bay	12 × 3.5" hot-swap drive bays, optional front 2 × 2.5" bays, optional internal 2.5" bays
HDD Shockproof	The drive cage features an EMI spring design and a unique anti-vibration fan, reducing resonance between the fan and drives without affecting drive I/O speed
System Fan	Standard configuration: 12 × 6056 fans
Expansion Slot	Supports 7 half-height PCIe expansion slots Supports 10 full-height, dual-width, full-length GPU cards
Security	CE, FCC, RoHS
Front Panel Control	2 × USB, 1 × VGA, 1 power button, 1 UID button, 1 reset button, 1 drive indicator light, 1 system alert indicator light, 2 network indicator lights
Slide Rail	Optional
Air Duct	Optional
Front Mask	Optional
Product Material	Imported SGCC (galvanized steel) with ABS panel and perforated mesh
Chassis Size	770 × 447.4 × 176.7 mm (D × W × H)
Chassis Gross Weight	48 kg (net weight) / 55 kg (gross weight)
Package Size	1036 × 730 × 339.5 mm (D × W × H)

Please note that the above specifications are subject to change without prior notice. (Chuyu reserves the right for the final interpretation)
